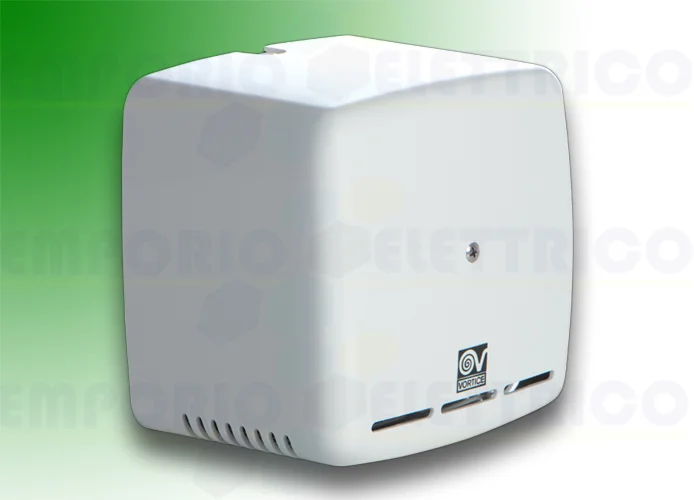

VORTICE - CENTRIFUGAL ASPIRATOR FOR AIR SHAFT, ARIETT LONG LIFE 30000h

• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER: 100 MM
• MOTOR WITH THERMAL OVERLOAD PROTECTION AND SHAFT TURNING IN BALL BEARINGS.
• MAXIMUM AIR FLOW 70 M3/H
• EQUIPPED WITH ELECTRONIC TIMER DESIGNED TO SHUT OFF THE MOTOR AUTOMATICALLY AFTER A SET INTERVAL, SELECTABLE DURING INSTALLATION IN THE RANGE 3’-20’ (DEFAULT SETTING 3’).
• NON-RETURN DAMPER FITTED TO OUTLET PORT.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS
• VORTICE SPEED CONTROLLER.

ARIETT LL Serie TIMER 11966

ABSORBED CURRENT MAX (A): 0,14
ABSORBED POWER MAX (W): 18
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 40
MAX. ABSORBED POWER AT MAX SPEED (W): 18
NOMINAL DIAMETER (MM): 100
Ø DISCHARGE HOLE (MM): 97
VOLTAGE (V): 230
WEIGHT (KG): 1,47
DELIVERY MAX (L/S): 19,4
DELIVERY MAX (M³/H): 70
PRESSURE MAX (MMH2O): 12
PRESSURE MAX (PA): 118
RPM: 2315
SOUND PRESSURE LEVEL LP [DB (A)] 3M: 40

SIZE A (MM): 156
SIZE B (MM): 123
SIZE C (MM): 25
SIZE D (MM): Ø 97
SIZE E (MM): 60
SIZE F (MM): 60

ARIETT series

vortice ariett ll timer centrifugal aspirator 11966

vortice vort quadro centrifugal aspirator ariett ll 11965
