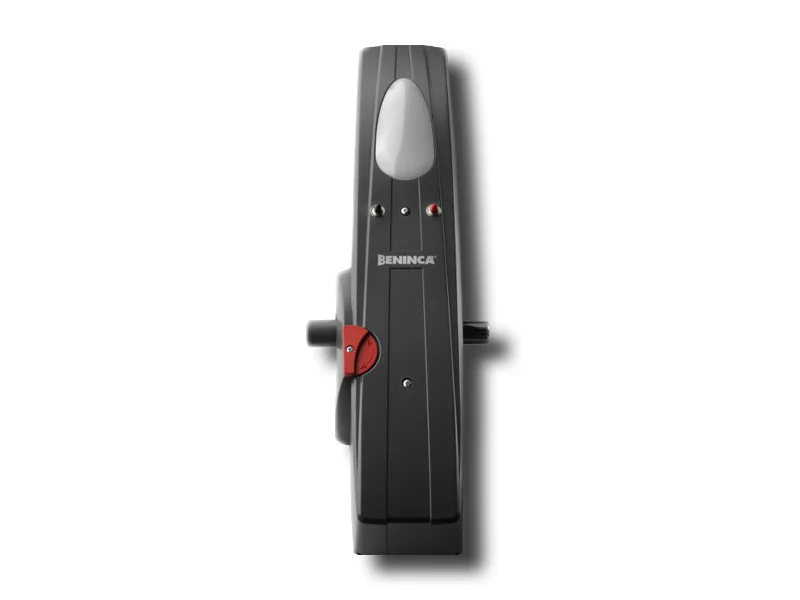

beninca 24vdc geared motor for garage and industrial doors zed24.sc 9590522
Brand: BENINCA
SKU: ZED24.SC
€668.00 €414.16VAT INCLUDED |
|---|
beninca 24vdc geared motor for garage and industrial doors zed24.sc 9590522
BENINCA - ELECTROMECHANICAL IRREVERSIBLE GEARED MOTOR FOR TILT UP DOORS WITH COUNTERWEIGHTS FOR RESIDENTIAL USE, WITH LEAVES UP TO 10 M2, FOR RESIDENTIAL/COMMERCIAL USE
- BUILT-IN COURTESY LIGHT
- OPTIONAL BATTERY POWERED OPERATION
- AMPEROMETRIC SENSOR OBSTACLE DETECTION SYSTEM TO PREVENT CRUSHING
CONTROL UNIT, RECEIVER AND ENCODER ARE NOT INCLUDED
POWER SUPPLY: 230 Vac (50-60Hz)
POWER SUPPLY: 24 Vdc
MAX ABSORBED CURRENT: 8 A
TORQUE: 260 Nm
OPENING TIME: 10''/15''
DUTY CYCLE: intensive use
PROTECTION LEVEL: IP40
OPERATING TEMPERATURE: -20°C / +50°C
MAX DOOR SURFACE: 10 M2/MAX
- BUILT-IN COURTESY LIGHT
- OPTIONAL BATTERY POWERED OPERATION
- AMPEROMETRIC SENSOR OBSTACLE DETECTION SYSTEM TO PREVENT CRUSHING
CONTROL UNIT, RECEIVER AND ENCODER ARE NOT INCLUDED
GEARED MOTOR FOR COUNTERWEIGHT GARAGE DOORS ZED
ZED24.SC 9590522
TECHNICAL DETAILS:ZED24.SC 9590522
POWER SUPPLY: 230 Vac (50-60Hz)
POWER SUPPLY: 24 Vdc
MAX ABSORBED CURRENT: 8 A
TORQUE: 260 Nm
OPENING TIME: 10''/15''
DUTY CYCLE: intensive use
PROTECTION LEVEL: IP40
OPERATING TEMPERATURE: -20°C / +50°C
MAX DOOR SURFACE: 10 M2/MAX
