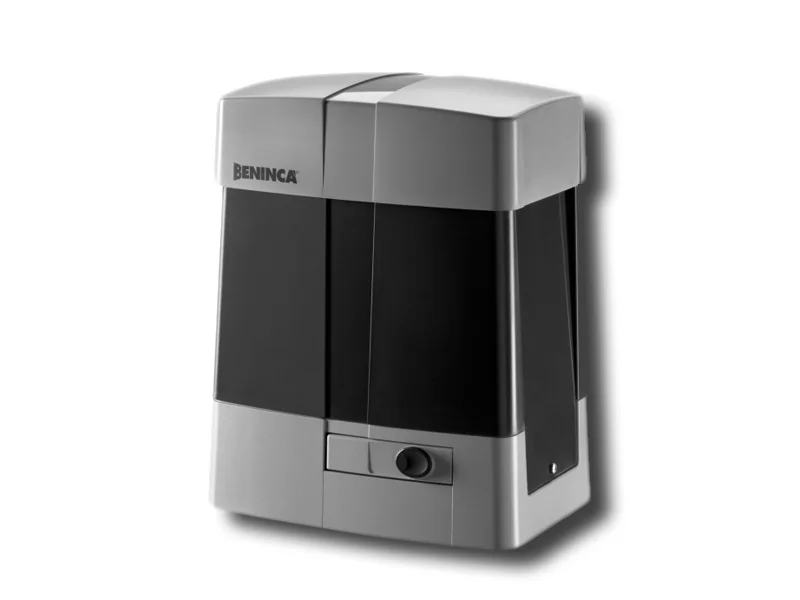

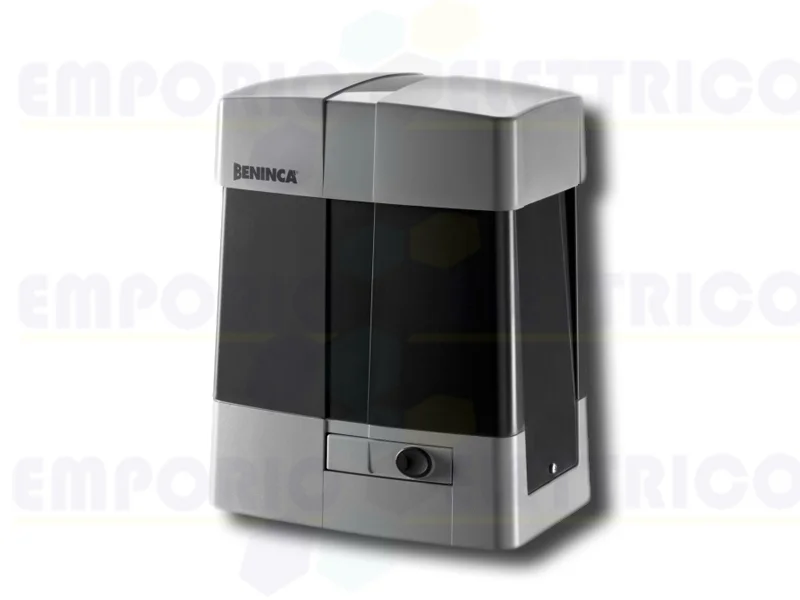

beninca geared motor 230vac for sliding gates bull20m.s 9592339
€868.00 |
|---|
BENINCA - IRREVERSIBLE ELECTROMECHANICAL GEARED MOTOR SINGLE-PHASE 230 VAC FOR INDUSTRIAL SLIDING GATES, UP TO 2000KG OF WEIGHT
- WITH BUILT-IN CONTROL UNIT AND ENCODER
- THE ENCODER DEVICE ENSURES CRUSH PREVENTION
AND PRECISION IN THE GATE MOVING PHASES
- CONTROL UNIT EQUIPPED WITH ELECTRONIC BRAKING
- VERSION EQUIPPED WITH MAGNETIC LIMIT SWITCHES
GEARED MOTOR FOR SLIDING GATES
BULL20M.S 9592339
- WITH BUILT-IN CONTROL UNIT AND ENCODER
- THE ENCODER DEVICE ENSURES CRUSH PREVENTION
AND PRECISION IN THE GATE MOVING PHASES
- CONTROL UNIT EQUIPPED WITH ELECTRONIC BRAKING
- VERSION EQUIPPED WITH MAGNETIC LIMIT SWITCHES
GEARED MOTOR FOR SLIDING GATES
BULL20M.S 9592339
TECHNICAL DETAILS:
Power supply: 230 Vac (50-60Hz)
Motor supply: 230 Vac
Max absorbed current: 2,9 A
Max thrust: 1667 N
Opening speed: 10,5 m/min
Duty cycle: 40%
Protection level: IP44
Built-in control unit: YES
Magnetic limit switches: YES
Operating temperature: -20°C /+50°C
Power supply: 230 Vac (50-60Hz)
Motor supply: 230 Vac
Max absorbed current: 2,9 A
Max thrust: 1667 N
Opening speed: 10,5 m/min
Duty cycle: 40%
Protection level: IP44
Built-in control unit: YES
Magnetic limit switches: YES
Operating temperature: -20°C /+50°C
