came 24v irreversible with encoder 001frog-a24e frog-a24e

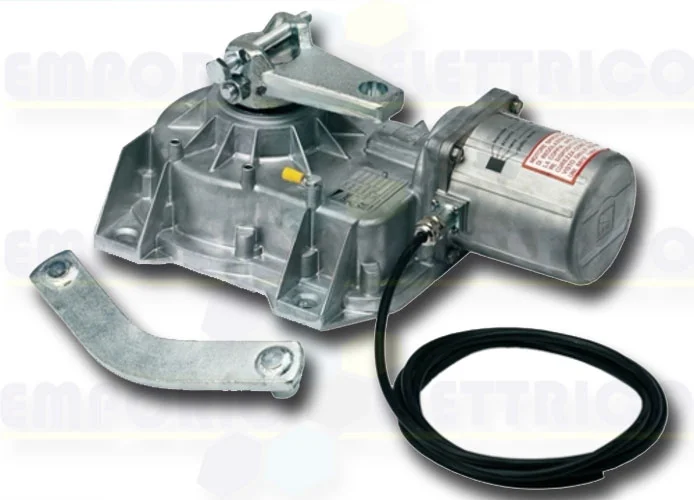

CAME - 24 V DC UNDERGROUND IRREVERSIBLE GEARMOTOR WITH ADJUSTABLE LEAF-CLOSING FOR GATE-LEAF OF UP TO 3,5 mt AND 400KG OF WEIGHT
IT COMES WITH THE ENCODER AND MECHANICAL, INTEGRATED AND ADJUSTABLE LIMIT SWITCHES
AUTOMATIC RE-ENGAGEMENT OF THE RELEASE SYSTEM AFTER MANUAL OPERATION OF THE GATE
PROVISION FOR OPERATION IN THE EVENT OF A POWER FAILURE
LEAF OPENING UP TO 180° USING 001FL-180 ACCESSORY

GEARMOTOR TESTED IN ACCORDANCE WITH EN12453 - EN12445 STANDARDS
90° MANOEUVRING TIME: ADJUSTABLE
PROTECTION LEVEL: 67
POWER SUPPLY: 24V DC





001FROG-A24E        FROG-A24E
24V DC

Complementary accessories (not included):
- 002ZLJ14: Multifunction control panel for single leaf gates with signalling display, self-diagnosis of safety devices and built-in radio decoding
- 002ZLJ24: Multifunction control panel for two-leaf gates with signalling display, self-diagnosis of safety devices and built-in radio decoding
- 002LB90: Card for connection of no. 2 emergency batteries 12V 1.2Ah for control panel ZLJ14
- 002LB180: Board for connection of no. 2 emergency batteries 12V 1.2Ah for control panel ZLJ24
- 001FROG-CFN: Steel, cataphoresis treated foundation box
- 001FROG-CFNI: Foundation box made of AISI 304 steel
- 001A4364: Release device with lever key.
- 001A4365: Release device with trilobe key
- 001A4366: Release device with customized key and EURO-DIN cylinder
- 001A4370: Drive lever for openings of up to 140° and gate leaves of max. 2 m in length
- 001FL-180: Drive chain lever for up to 180° openings and gate leaves of max. 2 m in
length, FROG-A24 excluded
- 001LOCK81: Single cylinder electric lock
- 001LOCK82: Double cylinder electric lock
