came automation kit axo ax302304 230v 001u7343 u7343

CAME AUTOMATION KIT AXO, TESTED ACCORDING TO STANDARDS EN 12453-EN 12445

COMPLETE SYSTEM FOR 2-LEAF SWING UP TO 3 m PER LEAF

230V AC MOTOR

KIT AXO
001U7343         U7343
230V AC

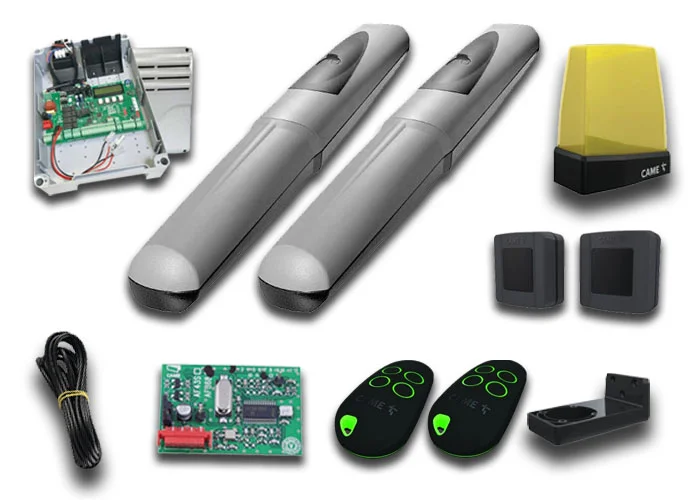

IT INCLUDES:
-  2  AX302304 Irreversible gearmotors with encoder for swing gates measuring up to 3 m per leaf
-  1  ZM3E Multifunction control panel for swing gates with two leaves, graphic alerts display, self-diagnosing safety devices and on-board radio decoding
-  1  AF868 Plug-in radio-frequency control card 868,35 MHz
-  2  806TS-0290 TOPDREN Dual-frequency 4-channel rolling code transmitter
-  1  TOP-A862N antenna 868,35 MHZ
-  1  806TF-0080 Pair of adjustable photocells with synchronised infrared ray for outdoor use. range: 30 metres (ex code 001delta-se)
-  1 806LA-0030: Led flashing light with power supply from 24 Vac-dc up to 230 Vac with yellow dome, double built-in antenna (433.92 MHz and 868.35 MHz)
-  1 806LA-0040 Wall-fastening base for krx flashing lights
-  1 Gate plate
