came automation kit krono kr510 230v 001u1443 u1443
Brand: CAME
SKU: 001U1443
€1,747.70 €1,258.34VAT INCLUDED |
|---|
came automation kit krono kr510 230v 001u1443 u1443
CAME - AUTOMATION KIT KRONO 001U1443, TESTED ACCORDING TO THE STANDARDS EN 12453-EN 12445
COMPLETE SYSTEM FOR SWING GATES WITH TWO LEAVES MEASURING MAX 5 MT PER LEAF, WITH 230V AC MOTOR, MAX LEAF WEIGHT 400KG
KR510S
KR510D
KIT KRONO 510
001U1443 U1443
230V AC

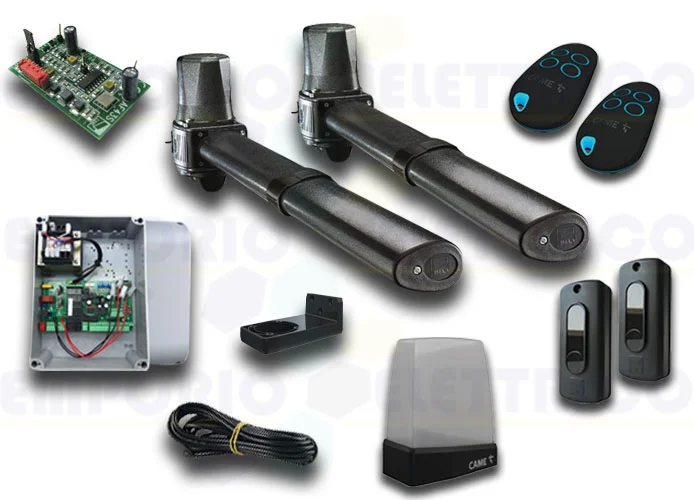

IT INCLUDES:
- 1 KR510D: Irreversible right gearmotor for swing gates of up to 5 Mt per leaf with
opening and closing limit-switch micro-switches.
- 1 KR510S: Irreversible left gearmotor for swing gates of up 5 Mt per leaf with opening
and closing micro limit-switches.
- 1 ZA3P: Multifunction control panel for two-leaved swing gates, with limit-switch
control and slow-down speed adjusting.
- 1 AF43S: Plug-in radio frequency control card 433,92 MHz
- 2 806TS-0270 TOP44RBN: 4-channel rolling code transmitter 433,92 MHz
- 1 TOP-RG58: Antenna cable 5 Mt
- 1 DIR10: Pair of 12 - 24 V AC - DC outdoor photocells - range 10 Mt
- 1 806LA-0020: Led flashing light with power supply from 24 Vac-dc up to 230 Vac, with double built-in antenna (433.92 MHz and 868.35 MHz), with white dome
- 1 806LA-0040: Wall-fastening base for krx flashing lights
- 1 Gate Plate
COMPLETE SYSTEM FOR SWING GATES WITH TWO LEAVES MEASURING MAX 5 MT PER LEAF, WITH 230V AC MOTOR, MAX LEAF WEIGHT 400KG
KR510S KR510DKIT KRONO 510
001U1443 U1443
230V AC
IT INCLUDES:
- 1 KR510D: Irreversible right gearmotor for swing gates of up to 5 Mt per leaf with
opening and closing limit-switch micro-switches.
- 1 KR510S: Irreversible left gearmotor for swing gates of up 5 Mt per leaf with opening
and closing micro limit-switches.
- 1 ZA3P: Multifunction control panel for two-leaved swing gates, with limit-switch
control and slow-down speed adjusting.
- 1 AF43S: Plug-in radio frequency control card 433,92 MHz
- 2 806TS-0270 TOP44RBN: 4-channel rolling code transmitter 433,92 MHz
- 1 TOP-RG58: Antenna cable 5 Mt
- 1 DIR10: Pair of 12 - 24 V AC - DC outdoor photocells - range 10 Mt
- 1 806LA-0020: Led flashing light with power supply from 24 Vac-dc up to 230 Vac, with double built-in antenna (433.92 MHz and 868.35 MHz), with white dome
- 1 806LA-0040: Wall-fastening base for krx flashing lights
- 1 Gate Plate
