came belt guide l=3,02 metri 001v0687 v0687

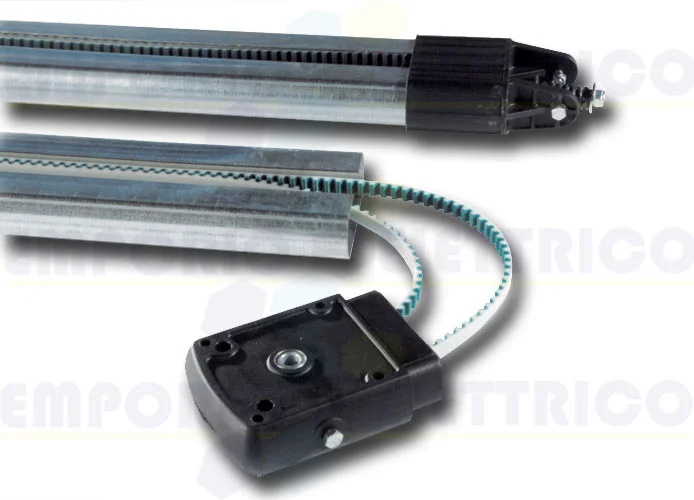

CAME - BELT GUIDE IN TWO PIECES L = 3.02 M.

MAX DOOR HEIGHT:
BC = 2.4 M BM = 2.25 M STA = 2.1 M STB = 2.2 M.




001V0687

NOTES
BC = Counterweighted overhead garage door - BM = Spring-balanced overhead garage door - STA = Type A sectional door - STB = Type B sectional door
