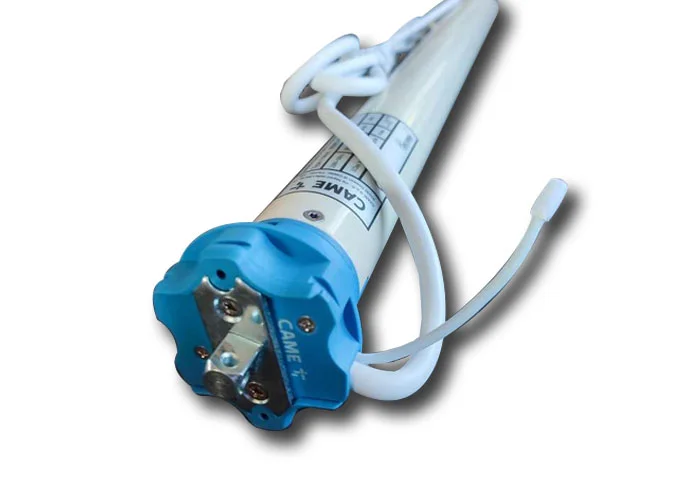

came tubular motor blinds kbs 230v 10Nm kbs51aas 809y5-0010
Brand: CAME
SKU: 809Y5-0010
€210.00 €127.26VAT INCLUDED |
|---|
came tubular motor blinds kbs 230v 10Nm kbs51aas 809y5-0010
CAME - 230V TUBULAR MOTOR FOR ROLLER BLINDS, TORQUE UP TO 10Nm
ELECTRONIC LIMIT SWITCH
869,50 MHz RADIO RECEIVER
DETECTOR OBSTACLES IN BOTH DIRECTIONS
ELECTRONIC LIMIT SWITCH
869,50 MHz RADIO RECEIVER
DETECTOR OBSTACLES IN BOTH DIRECTIONS
809Y5-0010 KBS51AAS
230V
230V
| CODE | 809Y5-0010 | 809Y5-0020 | 809Y5-0030 | 809Y5-0040 | 809Y5-0050 |
| Torque (Nm) | 10 | 20 | 30 | 40 | 50 |
| Speed Rpm | 15 | 15 | 15 | 15 | 12 |
| Lifted weight (Kg)* | 18 | 36 | 55 | 74 | 92 |
| Operating time (min) | 4 | 4 | 4 | 4 | 4 |
| Degree of protection (IP) | 44 | 44 | 44 | 44 | 44 |
| Absorption (A) | 0,48 | 0,69 | 0,87 | 0,99 | 0,99 |
| Power (W) | 113 | 161 | 200 | 228 | 228 |
| Length (mm) = L1 | 604 | 604 | 654 | 654 | 654 |
| Weight (Kg) | 2,21 | 2,29 | 2,6 | 2,7 | 2,85 |
| Package dimensions (mm) | 660 x 80 x 80 | 660 x 80 x 80 | 710 x 80 x 80 | 710 x 80 x 80 | 710 x 80 x 80 |
| Motor packed weight (Kg) | 2,47 | 2,64 | 3 | 3,1 | 3,25 |
