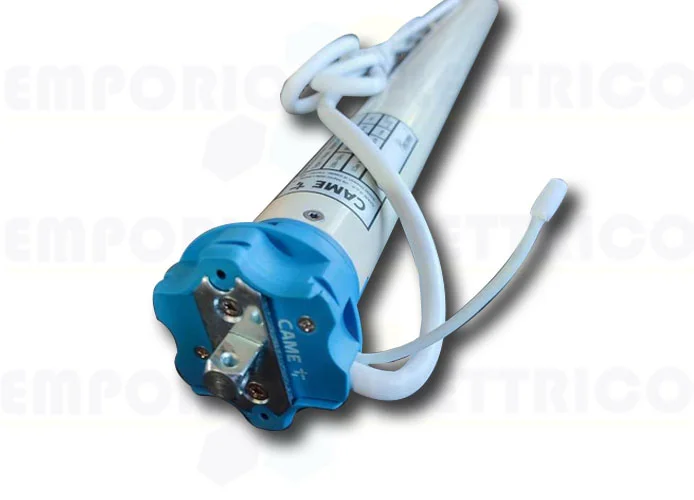

came tubular motor blinds kbs 230v 30Nm kbs51acs 809y5-0030
Brand: CAME
SKU: 809Y5-0030
€229.00 €171.50VAT INCLUDED |
|---|
came tubular motor blinds kbs 230v 30Nm kbs51acs 809y5-0030
CAME - 230V TUBULAR MOTOR FOR ROLLER BLINDS, TORQUE UP TO 30Nm
ELECTRONIC LIMIT SWITCH
869,50 MHz RADIO RECEIVER
DETECTOR OBSTACLES IN BOTH DIRECTIONS
ELECTRONIC LIMIT SWITCH
869,50 MHz RADIO RECEIVER
DETECTOR OBSTACLES IN BOTH DIRECTIONS
809Y5-0030 KBS51ACS
230V
230V
| CODE | 809Y5-0010 | 809Y5-0020 | 809Y5-0030 | 809Y5-0040 | 809Y5-0050 |
| Torque (Nm) | 10 | 20 | 30 | 40 | 50 |
| Speed Rpm | 15 | 15 | 15 | 15 | 12 |
| Lifted weight (Kg)* | 18 | 36 | 55 | 74 | 92 |
| Operating time (min) | 4 | 4 | 4 | 4 | 4 |
| Degree of protection (IP) | 44 | 44 | 44 | 44 | 44 |
| Absorption (A) | 0,48 | 0,69 | 0,87 | 0,99 | 0,99 |
| Power (W) | 113 | 161 | 200 | 228 | 228 |
| Length (mm) = L1 | 604 | 604 | 654 | 654 | 654 |
| Weight (Kg) | 2,21 | 2,29 | 2,6 | 2,7 | 2,85 |
| Package dimensions (mm) | 660 x 80 x 80 | 660 x 80 x 80 | 710 x 80 x 80 | 710 x 80 x 80 | 710 x 80 x 80 |
| Motor packed weight (Kg) | 2,47 | 2,64 | 3 | 3,1 | 3,25 |
