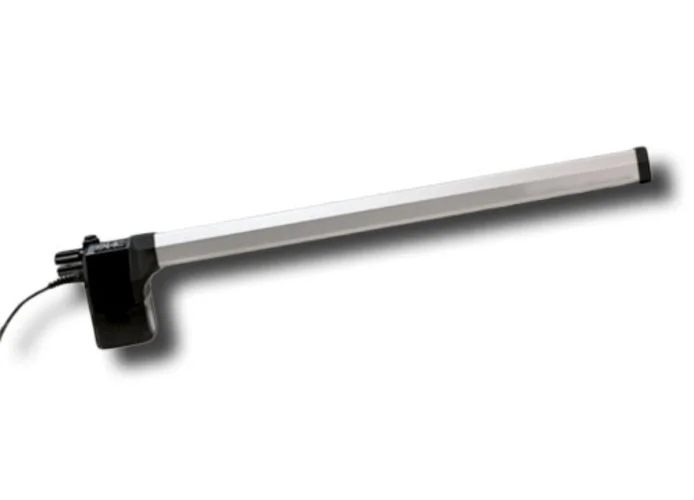

faac 412 dx gearmotor 230v ac 104470

FAAC - ELECTROMECHANICAL GEARMOTOR FOR SWING GATES FOR RESIDENTIAL APPLICATION, LEAF UP TO 1,8 M

- SUITABLE FOR RESIDENTIAL USE
- IRREVERSIBLE ACTUATOR, DOESN'T REQUIRE ELECTRIC LOCK
- SIMPLIFIED INSTALLATION AND MAINTENANCE
- UNLOCKING DEVICE ACCESSIBLE ON THE REAR SIDE OF THE ACTUATOR

ACTUATOR 412 DX
104470
230V AC

TECHNICAL DETAILS:
- POWER SUPPLY: 220-240V~ 50/60 HZ
- MAX POWER: 280 W
- MAX THRUST: 3500 N
- MAX SPEED ROD: 16 MM/S
- ROD STROKE: 290 MM
- MAX OPENING ANGLE LEAF: 110°
- OPERATING TEMPERATURE: -20°C ÷ + 55°C
- THERMOPROTECTION: 140°C
- DEGREE OF PROTECTION: IP44
- MAX LEAF WIDTH: 1,8 M
- SIZES (LXPXH): 991 X 101 X 172 MM
- ELECTRONIC EQUIPMENT: NOT INCLUDED

Complementary accessories (not included):
-  electronic board E045S 790077 (EX 790005)
-  electronic board E145S 790076 (EX 790006)
-  container mod. L for electronic boards 720118
