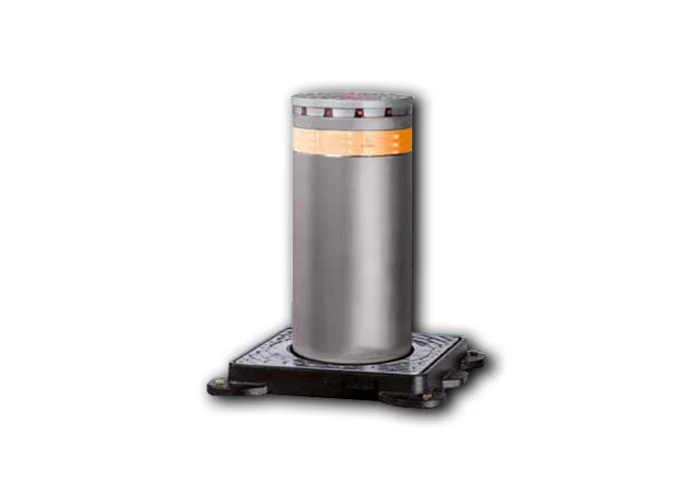

faac automatic retractable bollard j275 ha v2 h600 116006
Brand: FAAC
SKU: 116006
faac automatic retractable bollard j275 ha v2 h600 116006
FAAC - AUTOMATIC BOLLARD FOR COMMERCIAL AND INDUSTRIAL AREAS AND CITY GATES.
THIS RETRACTABLE BOLLARD J275 HA V2 IS RECOMMENDED FOR ALL AREAS WHERE MANY TRANSITS ARE EXPECTED PER DAY
- HEIGHT 600MM
- GUARANTEED FOR HIGH FREQUENCIES OF USE
- FULL OPTIONAL PRODUCT, SUPPLIED ALREADY EQUIPPED WITH THE MAIN ACCESSORIES
- HYDRAULIC UNIT INTEGRATED IN THE BOLLARD
- PERFECT INTERCHANGEABILITY WITH FIRST-GENERATION BOLLARDS
- GENTLE STOP FUNCTION TO ENSURE A GENTLE STOP ON THE LOW LIMIT SWITCH
THE PRODUCT IS EQUIPPED WITH:
- 7 MM THICK STEEL CYLINDER WITH CATAPHORESIS TREATMENT AND PAINTED
- METALLIC DARK GREY POWDER COATING RAL7021
- CROWN FLASHING LIGHT WITH LED LIGHT
- MOVEMENT SOUND ALARM
- EMERGENCY LOWERING IN CASE OF POWER CUT
- RELEASE KEY FOR MANUAL EMERGENCY LOWERING
- ARTICLE BY ORDER, AVAILABILITY 1-2 WEEKS.
FAAC J275 HA V2 H600
116006
THIS RETRACTABLE BOLLARD J275 HA V2 IS RECOMMENDED FOR ALL AREAS WHERE MANY TRANSITS ARE EXPECTED PER DAY
- HEIGHT 600MM
- GUARANTEED FOR HIGH FREQUENCIES OF USE
- FULL OPTIONAL PRODUCT, SUPPLIED ALREADY EQUIPPED WITH THE MAIN ACCESSORIES
- HYDRAULIC UNIT INTEGRATED IN THE BOLLARD
- PERFECT INTERCHANGEABILITY WITH FIRST-GENERATION BOLLARDS
- GENTLE STOP FUNCTION TO ENSURE A GENTLE STOP ON THE LOW LIMIT SWITCH
THE PRODUCT IS EQUIPPED WITH:
- 7 MM THICK STEEL CYLINDER WITH CATAPHORESIS TREATMENT AND PAINTED
- METALLIC DARK GREY POWDER COATING RAL7021
- CROWN FLASHING LIGHT WITH LED LIGHT
- MOVEMENT SOUND ALARM
- EMERGENCY LOWERING IN CASE OF POWER CUT
- RELEASE KEY FOR MANUAL EMERGENCY LOWERING
- ARTICLE BY ORDER, AVAILABILITY 1-2 WEEKS.
FAAC J275 HA V2 H600
116006
| Actuator type | Hydraulic actuator | |||
| Cylinder height above ground | 600 mm |
| ||
| Cylinder diameter | 275 mm | |||
| Cylinder treatment type | Cataphoresis and RAL 7021 metallic dark grey polyester powder coating |
| ||
| Climbing time | ~5 s (*) |
| ||
| Descent time | ~3,5 s (*) |
| ||
| Emergency lowering device | YES (excludable) | |||
| Emergency lowering time | ~1,2 s (*) |
| ||
| Lifting obstacle detection | YES | |||
| Release device | YES | |||
| Slowing down | YES | |||
| Mains supply voltage | 220-240V ~ 50/60Hz | |||
| Maximum power | 575 W (*) | |||
| Hydraulic unit degree of protection | IP67 | – |
| |
| Type of use | Intensive use (Traffic) | |||
| Impact resistance | 38.000 J |
| ||
| Breaking resistance | 128.000 J |
| ||
| Cockpit weight | 55 Kg |
| ||
| Bollard weight | 116 Kg |
| ||
| Load class (EN 124) | C250 (25t) | |||
| Ambient operating temperature | -15 °C / +55 °C | |||
| Ambient operating temperature with heater
| -25 °C / +55 °C | |||
