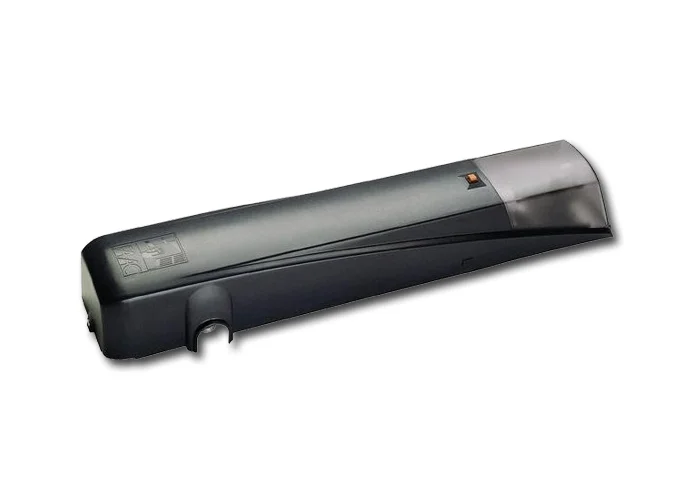

faac hydraulic actuator 595 i 230v ac 110598

FAAC - HYDRAULIC GEARMOTOR FOR COUNTERWEIGHTED OVERHEAD DOORS FOR RESIDENTIAL AND CONDOMINIUM USE.

- FOR OVERHEAD DOORS UP TO 3.5M WIDE (5M WITH TWO OPERATORS)
- ANTI-CRUSHING SAFETY ENSURED BY A HYDRAULIC DEVICE
- SELF-LOCKING SYSTEM WITH HYDRAULIC LOCKING ON OPENING AND CLOSING.

FAAC HYDRAULIC GEARMOTOR 595
110598

TECHNICAL FEATURES:
Supply voltage: 230 Vac (+6% -10%) 50 (60) Hz
Electric motor: single-phase with two running directions
Motor rotation speed: 1400 rpm
Power consumption: 220 W
Current consumption: 1 A
Output torque: 0÷400 Nm
Angular speed: 9°15'/s
Thermal protection on motor winding: 120°C
Ambient operating temperature: -20°C to +55°C
Weight with oil: 11 kg
Oil type: FAAC HP oil
Degree of protection: IP 31 (for indoor use only)
Pump flow rate: 0.75 l/min.
