faac kit automation 24v 390 swing gates 868MHz magnum plus 105660146
Brand: FAAC
SKU: 105660146
€2,983.00 €1,789.80VAT INCLUDED |
|---|
faac kit automation 24v 390 swing gates 868MHz magnum plus 105660146
FAAC - KIT AUTOMATION ELECTROMECHANICAL WITH ARTICULATED ARMS FOR SWING GATES UP TO 1,8 MT IN DEPTH
- IRREVERSIBLE AUTOMATION
- UNTILL 1,8 MT DOESN'T NEED ELECTRICAL RELEASE, TO INCREASE LEAF DEPTH UP TO 3 MT IT NEEDS ELECTROLOCK
- MAX LEAF OPENING UP TO 120° OUTWARD
- EQUIPPED WITH AN ANTI-CRUSH SYSTEM
- THE CONTROL UNIT MANAGES: SLOWDOWNS IN OPENING/CLOSING, SPEED AND FORCE
- MANUAL RELEASE DEVICE THAT CAN BE USED FROM INSIDE THE PROPERTY OR FROM OUTSIDE USING A SPECIFIC DEVICE
ALIMENTATION: 24V DC
MAGNUM KIT PLUS
105660146
24V DC

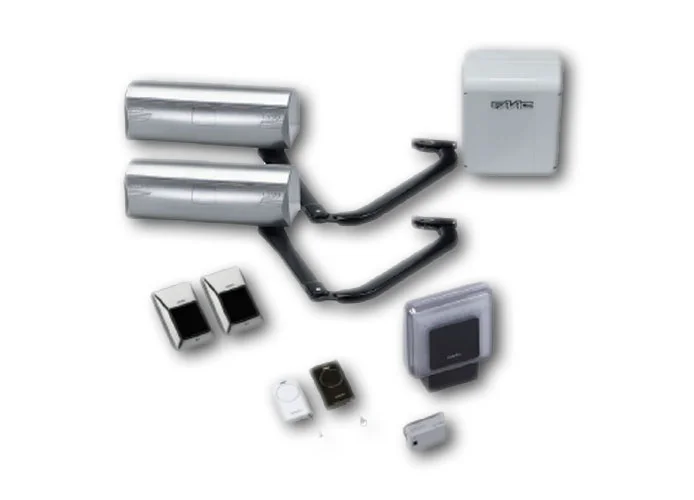

IT INCLUDES:
- 2 Gearmotors 390 24V DC 104573
- 2 Articuleted arms (for motors 390) 738705
- 1 Electronic board + container E024S 24V DC 790286
- 1 Receiver omnidec 868 MHz XF868 787832 (ex 319007) 787832
- 1 Remote control 4-channel 868 MHz xt4 868 SLH LR (black) 7870101
- 1 Remote control 4-channel 868 MHz xt4 868 SLH LR (white) 787010
- 1 Led flashing light XLED 24V 410029
- 1 Pair of external photocells bus XP30B inox 7851061
- 1 "Automatico FAAC" sign
- IRREVERSIBLE AUTOMATION
- UNTILL 1,8 MT DOESN'T NEED ELECTRICAL RELEASE, TO INCREASE LEAF DEPTH UP TO 3 MT IT NEEDS ELECTROLOCK
- MAX LEAF OPENING UP TO 120° OUTWARD
- EQUIPPED WITH AN ANTI-CRUSH SYSTEM
- THE CONTROL UNIT MANAGES: SLOWDOWNS IN OPENING/CLOSING, SPEED AND FORCE
- MANUAL RELEASE DEVICE THAT CAN BE USED FROM INSIDE THE PROPERTY OR FROM OUTSIDE USING A SPECIFIC DEVICE
ALIMENTATION: 24V DC
MAGNUM KIT PLUS
105660146
24V DC
IT INCLUDES:
- 2 Gearmotors 390 24V DC 104573
- 2 Articuleted arms (for motors 390) 738705
- 1 Electronic board + container E024S 24V DC 790286
- 1 Receiver omnidec 868 MHz XF868 787832 (ex 319007) 787832
- 1 Remote control 4-channel 868 MHz xt4 868 SLH LR (black) 7870101
- 1 Remote control 4-channel 868 MHz xt4 868 SLH LR (white) 787010
- 1 Led flashing light XLED 24V 410029
- 1 Pair of external photocells bus XP30B inox 7851061
- 1 "Automatico FAAC" sign
