faac licence plate reading camera readerplate-ds-tcg405 105983
Brand: FAAC
SKU: 105983
€1,864.06 |
|---|

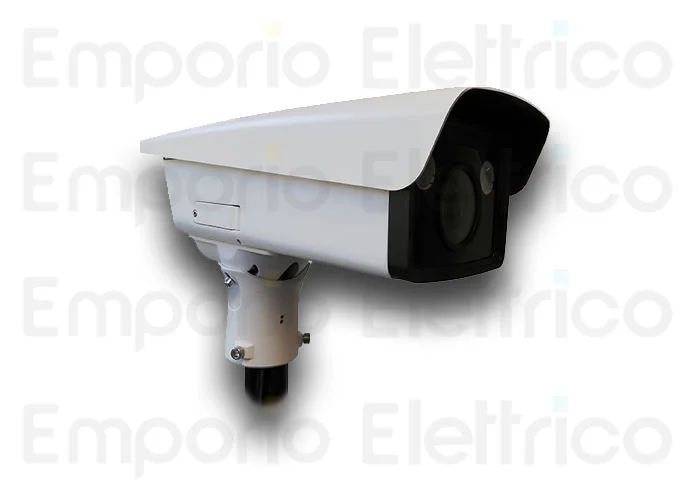

FAAC - DS-TCG405 SERIES LICENCE PLATE READING CAMERA
EQUIPPED WITH INTEGRATED OPTICAL CHARACTER RECOGNITION (OCR), OPERATION UNDER ANY AMBIENT LIGHTING
POLE OR WALL INSTALLATION AND UNBRANDED COVER
SUITABLE FOR SMALL/MEDIUM RESIDENTIAL OR COMMERCIAL INSTALLATIONS WITH A SMALL NUMBER OF TRANSITS.
ACCESSORIES: POLE ADAPTER Ø67MM TO Ø127MM AND WALL BRACKET
EQUIPPED WITH INTEGRATED OPTICAL CHARACTER RECOGNITION (OCR), OPERATION UNDER ANY AMBIENT LIGHTING
POLE OR WALL INSTALLATION AND UNBRANDED COVER
SUITABLE FOR SMALL/MEDIUM RESIDENTIAL OR COMMERCIAL INSTALLATIONS WITH A SMALL NUMBER OF TRANSITS.
ACCESSORIES: POLE ADAPTER Ø67MM TO Ø127MM AND WALL BRACKET
READERPLATE-DS-TCG405
105983
105983
| Operating ambient temperature | -30°C ÷ 70°C |
| Operating humidity | 90% or less (non-condensing) |
| Power supply voltage | 12 VDC, PoE |
| Absorbed current | 1.0 A |
| Max absorbed power | 20 W |
| Protection class | IP67, IK10 |
| Dimensions (LxDxH) | 145 X 357 X 211 mm |
| ANPR (Automatic number-plate recognition) | |
| Recognised number plates | European and Russian-Speaking Regions: Italy, France, Spain, United Kingdom, Ireland, Germany, Austria, Netherlands, Poland, Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, Macedonia, Hungary, Greece, Switzerland, Israel, Ukraine, Kyrgyzstan, and Russian Federation. Asia Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Burma, Japan, India, Mongolia |
| Number plate reading accuracy (with recommended installation and lighting conditions) | > 98% |
| Camera | |
| Optical sensor | 1/2.8” Progressive CMOS Scan |
| Minimum illumination | Color: 0.002Lux@(F1.2, AGC ON) |
| B/W: 0.002Lux@(F1.2, AGC ON) | |
| Shutter speed | 1/30 s to 1/100,000 s |
| Lenses | 3.1 mm to 9 mm |
| IR filter | Supported |
| Immagine | |
| Image format | JPEG |
| Maximum resolution | 1920 × 1200 |
| Frame Rate | 25 fps(1920 × 1200) |
| Network | |
| Protocollo | TCP/IP, HTTP, DHCP, DNS, RTP, RTSP, NTP, FTP |
| Interface | |
| LAN | 1 RJ45 10M/100M/1000M Ethernet port |
| Serial Port | RS-485 for connection to the Vehicular column |
| RS-232 adapter for connection to Door Controller | |
| Integrated LEDs | 2 built-in LEDs |
