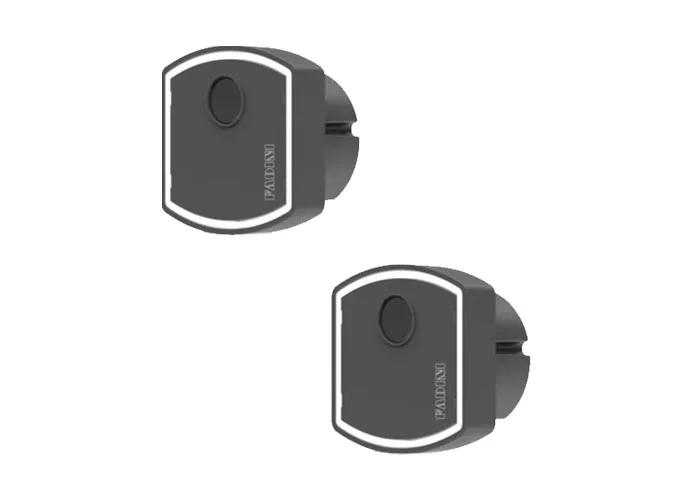

fadini pair of built-in 24v photocells zero.ph 141l (ex code 550l/551l)
Brand: FADINI
SKU: 141L
€77.00 €38.50VAT INCLUDED |
|---|
fadini pair of built-in 24v photocells zero.ph 141l (ex code 550l/551l)
FADINI - PAIR OF BUIL-IN PHOTOCELLS, RANGE 20 M
- LED LIGHT FRAME
- ABS BODY WITH HIGH RESISTANCE TO ATMOSPHERIC AGENTS
- RELAY OUTPUT FOR CONNECTION TO ANY ELPRO SERIES CONTROL PROGRAMMER OR TO AN EXISTING SYSTEM
POWER SUPPLY VOLTAGE (Vac/dc): 12/24
MAX TRANSMITTER CONSUMPTION (mA): 26
MAX RECEIVER SUPPLY (mA): 36
OPERATING TEMPERATURES (°C): -20 ÷ +70
OUTPUT CONTACT (Vdc, A/Vac, A): 30, 1/125, 0.3
FLOW RANGE (m): 20
CONTACT RELIEF TIME (ms): 6
DEGREE OF PROTECTION IP: 55
- LED LIGHT FRAME
- ABS BODY WITH HIGH RESISTANCE TO ATMOSPHERIC AGENTS
- RELAY OUTPUT FOR CONNECTION TO ANY ELPRO SERIES CONTROL PROGRAMMER OR TO AN EXISTING SYSTEM
PAIR OF FLUSH-MOUNTED PHOTOCELLS
141L (EX CODE 550L/551L) ZERO.PH
MODULATED LIGHT FREQUENCY (Hz): 625/320141L (EX CODE 550L/551L) ZERO.PH
POWER SUPPLY VOLTAGE (Vac/dc): 12/24
MAX TRANSMITTER CONSUMPTION (mA): 26
MAX RECEIVER SUPPLY (mA): 36
OPERATING TEMPERATURES (°C): -20 ÷ +70
OUTPUT CONTACT (Vdc, A/Vac, A): 30, 1/125, 0.3
FLOW RANGE (m): 20
CONTACT RELIEF TIME (ms): 6
DEGREE OF PROTECTION IP: 55
