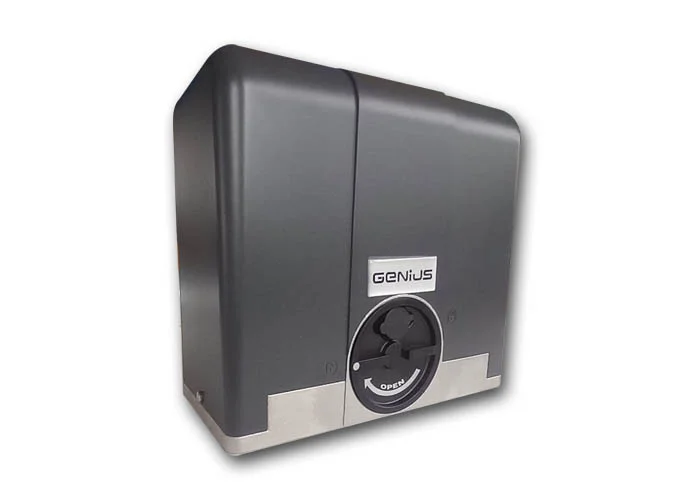

genius irreversible gearmotor blizzard 900 c enc 230v 61100861
Brand: GENIUS
SKU: 61100861
€711.00 €334.17VAT INCLUDED |
|---|
genius irreversible gearmotor blizzard 900 c enc 230v 61100861
GENIUS - IRREVERSIBLE GEARMOTOR BLIZZARD WITH SPRINT CENTRAL 382 FOR SLIDING GATES MAX 900 kg
SUITABLE FOR RESIDENTIAL/CONDOMINIUM USE
ENCODER AND MAGNETIC LIMIT SWITCHES INCLUDED
ELECTRONIC BOARD WITH PROTECTION COVER AND EXTERNAL PROGRAMMING KEYS
COMPACT DIMENSIONS
LARGE INTERNAL SPACE FOR CABLING AND FLEXIBLE HEIGHT AND DEPTH ADJUSTMENT
ALUMINIUM BASE
SUITABLE FOR RESIDENTIAL/CONDOMINIUM USE
ENCODER AND MAGNETIC LIMIT SWITCHES INCLUDED
ELECTRONIC BOARD WITH PROTECTION COVER AND EXTERNAL PROGRAMMING KEYS
COMPACT DIMENSIONS
LARGE INTERNAL SPACE FOR CABLING AND FLEXIBLE HEIGHT AND DEPTH ADJUSTMENT
ALUMINIUM BASE
61100861
BLIZZARD 900 C ENC
230V
BLIZZARD 900 C ENC
230V
TECHNICAL DETAILS:
- POWER SUPPLY (V): 230
- ELECTRIC MOTOR (V): 230
- NOMINAL POWER (W): 540
- THERMAL PROTECTION (°C): 140 (SELF-RESTORING)
- CAPACITOR (ΜF): 12,5
- MAX. THRUST (N): 590
- PINION TYPE: Z16 MOD. 4
- LEAF SPEED (M/MIN): 12
- OPERATING FREQUENCY: AT 20° S3 -
- OPERATING TEMPERATURE (°C): -20
- DEGREE OF PROTECTION: IP44
- WEIGHT (KG): 10
- POWER SUPPLY (V): 230
- ELECTRIC MOTOR (V): 230
- NOMINAL POWER (W): 540
- THERMAL PROTECTION (°C): 140 (SELF-RESTORING)
- CAPACITOR (ΜF): 12,5
- MAX. THRUST (N): 590
- PINION TYPE: Z16 MOD. 4
- LEAF SPEED (M/MIN): 12
- OPERATING FREQUENCY: AT 20° S3 -
- OPERATING TEMPERATURE (°C): -20
- DEGREE OF PROTECTION: IP44
- WEIGHT (KG): 10
