genius irreversible gearmotor euro breeze 06 sb/sx 230v 6120045
Brand: GENIUS
SKU: 6120045
€501.00 €235.47VAT INCLUDED |
|---|

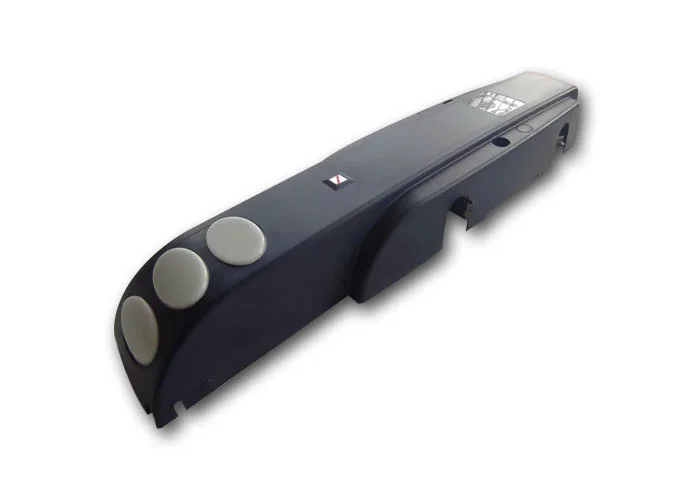

genius irreversible gearmotor euro breeze 06 sb/sx 230v 6120045
GENIUS - IRREVERSIBLE GEARMOTOR EURO BREEZE 06 FOR UP-AND-OVER DOORS UP TO 3,3 x 3 m ( 5 x 3 m WITH TWO MOTORS)
SUITABLE FOR RESIDENTIAL USE
ELECTRIC LIMIT SWITCH, COURTESY LIGHT AND ENCODER INTEGRATED
SUPPORTING CROSSBAR PREPARED FOR MOUNTING THE GEARMOTOR IN VARIOUS POSITIONS
POWER SUPPLY:230V AC
MODEL WITHOT CONTROL UNIT ON BOARD
SUITABLE FOR RESIDENTIAL USE
ELECTRIC LIMIT SWITCH, COURTESY LIGHT AND ENCODER INTEGRATED
SUPPORTING CROSSBAR PREPARED FOR MOUNTING THE GEARMOTOR IN VARIOUS POSITIONS
POWER SUPPLY:230V AC
MODEL WITHOT CONTROL UNIT ON BOARD
6120045
EURO BREEZE 06 SB/SX
230V
EURO BREEZE 06 SB/SX
230V
TECHNICAL DETAILS:
- POWER SUPPLY (V): 230
- ELECTRIC MOTOR (V): 230
- POWER (W): 350
- CURRENT (A): 1.5
- THERMAL PROTECTION (°C): 140
- CAPACITATOR (μF): 10
- MAX. TORQUE (NM): 300
- ANGULAR SPEED (°/SEC): 12
- OPENING TIME AT 90° (SEC):¹ 15
- OPERATING FREQUENCY AT 20°C: S3 - 30%.
- CYCLES PER HOUR AT 20°C: ≥24
- OPERATING TEMPERATURE (°C): 20 +55
- OPERATOR WEIGHT (KG): 7.5
- DEGREE OF PROTECTION²: IP44
- POWER SUPPLY (V): 230
- ELECTRIC MOTOR (V): 230
- POWER (W): 350
- CURRENT (A): 1.5
- THERMAL PROTECTION (°C): 140
- CAPACITATOR (μF): 10
- MAX. TORQUE (NM): 300
- ANGULAR SPEED (°/SEC): 12
- OPENING TIME AT 90° (SEC):¹ 15
- OPERATING FREQUENCY AT 20°C: S3 - 30%.
- CYCLES PER HOUR AT 20°C: ≥24
- OPERATING TEMPERATURE (°C): 20 +55
- OPERATOR WEIGHT (KG): 7.5
- DEGREE OF PROTECTION²: IP44
