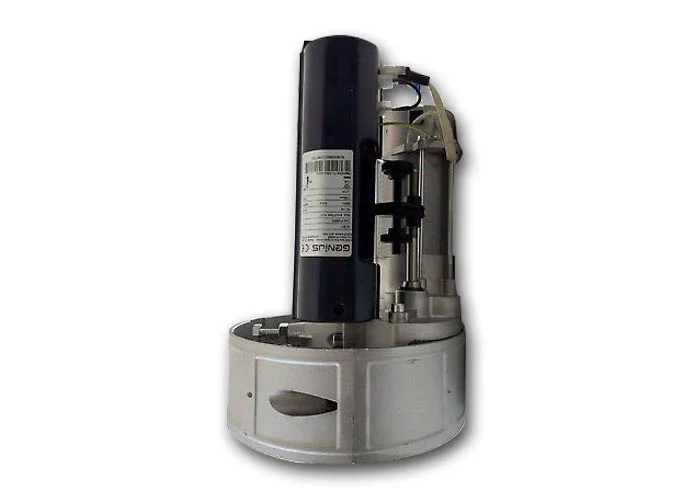

genius irreversible operator for rolling shutters shutter 15 230v 6140004
Brand: GENIUS
SKU: 6140004
€342.00 €160.74VAT INCLUDED |
|---|
genius irreversible operator for rolling shutters shutter 15 230v 6140004
GENIUS - IRREVERSIBLE OPERATOR FOR ROLLING SHUTTERS WITH ELECTROMAGNETIC BRAKE, 200 mm CROWN WHEEL DIAMETER, 60 mm SHAFT DIAMETER, LIFTING UP TO 170 Kg
(THE CROWN DIAMETER CAN BE EXTENDEDIT TO Ø 220 MM BY USING THE PLASTIC ADAPTER SLEEVE INCLUDED IN THE PACKAGE FOR SHUTTER MODELS 15
IT CAN ALSO BE USED WITH SHAFT DIAMETERS Ø 48 MM, Ø 42 MM OR Ø 33 MM BY ADDING OPTIONAL ADAPTER SLEEVES 6100273)
- COMPLETELY MAINTENANCE-FREE, SILENT AND QUICK TO INSTALL
- MANUAL RELEASE ACTING DIRECTLY ON THE REDUCTION SO THAT THE FRAME IS LIGHTER
- MICROMETRIC LIMIT SWITCH ADJUSTMENT IN SEMI-AUTOMATIC MODE
(THE CROWN DIAMETER CAN BE EXTENDEDIT TO Ø 220 MM BY USING THE PLASTIC ADAPTER SLEEVE INCLUDED IN THE PACKAGE FOR SHUTTER MODELS 15
IT CAN ALSO BE USED WITH SHAFT DIAMETERS Ø 48 MM, Ø 42 MM OR Ø 33 MM BY ADDING OPTIONAL ADAPTER SLEEVES 6100273)
- COMPLETELY MAINTENANCE-FREE, SILENT AND QUICK TO INSTALL
- MANUAL RELEASE ACTING DIRECTLY ON THE REDUCTION SO THAT THE FRAME IS LIGHTER
- MICROMETRIC LIMIT SWITCH ADJUSTMENT IN SEMI-AUTOMATIC MODE
SHUTTER 15 6140004
230V AC
230V AC
TECHNICAL DETAILS:
POWER SUPPLY (V): 230
POWER FREQUENCY (HZ): 50
TORQUE (NM):170
POWER (W):630
ABSORPTION (A):2.7
MAX. WORKING TIME (MIN.):4
MAX. SHUTTER HEIGHT (M): 6
OPERATING TEMPERATURE (°C): -20 +55
POWER SUPPLY (V): 230
POWER FREQUENCY (HZ): 50
TORQUE (NM):170
POWER (W):630
ABSORPTION (A):2.7
MAX. WORKING TIME (MIN.):4
MAX. SHUTTER HEIGHT (M): 6
OPERATING TEMPERATURE (°C): -20 +55
