nologo photocell for outdoor gates/doors 12-24V miniaturised zoom-z5e
Brand: NOLOGO
SKU: ZOOM-Z5E
€34.50 €17.84VAT INCLUDED |
|---|
nologo photocell for outdoor gates/doors 12-24V miniaturised zoom-z5e

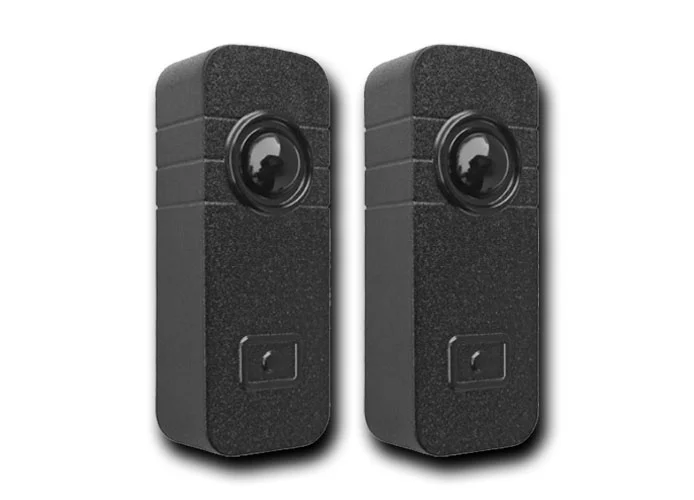

NOLOGO - MINIATURISED PHOTOCELL FOR OUTDOOR GATES AND DOORS
- POWER SUPPLY 12-24 VAC-VCC
- CONSTRUCTED WITH PROTECTION AND SHIELDING CIRCUITRY
- PREPARED FOR SYNCHRONISM
- SET CONSISTING OF TRANSMITTER AND RECEIVER
- 20 M RANGE IN ALL CONDITIONS.
NOLOGO
ZOOM-Z5E
- CONSUMPTION (MA): TX25MA, RX 35MA
- RELAY CONTACT: NC MAX 500MA 48V
- MAX RANGE UP (MT): 10/20
- IP GRADE: 54
- DIMENSIONS (MM): 30X80X26.
- POWER SUPPLY 12-24 VAC-VCC
- CONSTRUCTED WITH PROTECTION AND SHIELDING CIRCUITRY
- PREPARED FOR SYNCHRONISM
- SET CONSISTING OF TRANSMITTER AND RECEIVER
- 20 M RANGE IN ALL CONDITIONS.
NOLOGO
ZOOM-Z5E
TECHNICAL CHARACTERISTICS
- POWER SUPPLY: 12-36VAC/DC- CONSUMPTION (MA): TX25MA, RX 35MA
- RELAY CONTACT: NC MAX 500MA 48V
- MAX RANGE UP (MT): 10/20
- IP GRADE: 54
- DIMENSIONS (MM): 30X80X26.
