vds irreversible gearmotor tom 230 - 400y m4 11040
Brand: VDS
SKU: 11040
€2,519.00 €1,108.36VAT INCLUDED |
|---|
vds irreversible gearmotor tom 230 - 400y m4 11040

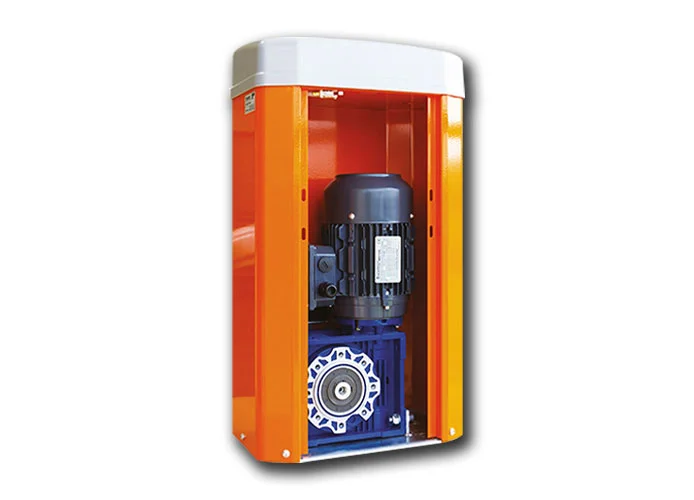

VDS - IRREVERSIBLE GEARMOTOR TOM 230-400Y FOR SLIDING GATES, UP TO 5000 KG
INTENSIVE USE
WITHOUT CONTROL UNIT
CPT COUNTERPLATE NOT INCLUDED
PINION M4.
FEATURES
INTENSIVE USE
WITHOUT CONTROL UNIT
CPT COUNTERPLATE NOT INCLUDED
PINION M4.
IRREVERSIBLE GEARMOTOR TOM 11040
230V-400V AC
FEATURES
- Gates up to 5000 kg
- Painted steel and stainless steel gearmotor casing, abs cover
- Steel and bronze gears machined from billet
- Air-cooled motor and gearbox in oil bath
- Version with or without control equipment
- External control equipment with sealed box
- High-performance electric motor
- Version with mechanical limit switch
- Manual release with hexagonal key
- Extremely quiet operation
- Motor not equipped with mechanical clutch, provide appropriate safety equipment
- Motor door safety microswitch
- Three-phase 230 - 400Y Vac electric motor.
