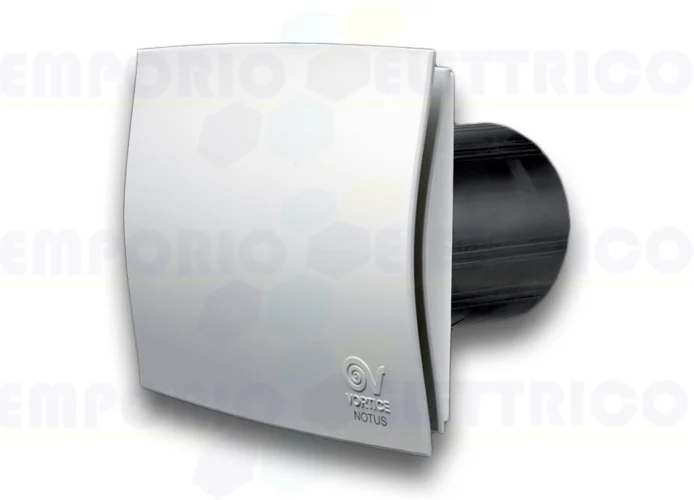

vortice axial aspirator continuous ventilation vort notus 11903
Brand: VORTICE
SKU: 11903
vortice axial aspirator continuous ventilation vort notus 11903
VORTICE - AXIAL ASPIRATOR FOR WALL, CEILING AND DUCT, IDEAL FOR CONTINUOUS VENTILATION (THANKS TO THE VERY LOW CONSUMPTION OF THE ELECTRONIC COMMUTED MOTOR - EC BRUSHLESS, ADOPTED), OF RESIDENTIAL AND COMMERCIAL PLACES OF SMALL AND MEDIUM DIMENSIONS, WHOSE PLAN ALLOWS DIRECT DISCHARGE OR IN PIPING OF REDUCED LENGTH
• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 100 MM
• THREE-PHASE EC BRUSHLESS MOTOR OF EXTERNAL ROTOR TYPE WITH SHAFT TURNING IN BALL BEARINGS, DESIGNED TO GUARANTEE NOTABLY LOW ENERGY CONSUMPTION AND TO PROVIDE 3 DIFFERENT AIR FLOW RATES (THE FIRST TWO OF WHICH CAN BE SELECTED AT THE MOMENT OF INSTALLATION)
• AIR FLOW BETWEEN 11.7 M3/H AND 42 M3/H
VORT NOTUS 11903
• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 100 MM
• THREE-PHASE EC BRUSHLESS MOTOR OF EXTERNAL ROTOR TYPE WITH SHAFT TURNING IN BALL BEARINGS, DESIGNED TO GUARANTEE NOTABLY LOW ENERGY CONSUMPTION AND TO PROVIDE 3 DIFFERENT AIR FLOW RATES (THE FIRST TWO OF WHICH CAN BE SELECTED AT THE MOMENT OF INSTALLATION)
• AIR FLOW BETWEEN 11.7 M3/H AND 42 M3/H
VORT NOTUS 11903
ABSORBED POWER 1ST SPEED (W): 1,5
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,025
MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,018
MAX. ABSORBED POWER AT MAX SPEED (W): 2,8
NOMINAL DIAMETER (MM): 100
VOLTAGE (V): 220-230
WEIGHT (KG): 0,8
DELIVERY 1ST SPEED (L/S): 3,3
DELIVERY 1ST SPEED (M³/H): 11,7
MAX DELIVERY AT MAX SPEED (L/S): 11,7
MAX DELIVERY AT MAX SPEED (M³/H): 42
PRESSURE - 1ST SPEED (MMH20): 2,4
PRESSURE - 1ST SPEED (PA): 23,5
PRESSURE MAX - MAX SPEED (MMH20): 8,8
PRESSURE MAX - MAX SPEED (PA): 86,3
SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MAX SPEED: 17.3
SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MIN SPEED: 10.1
SIZE A (MM): 194,6
SIZE B (MM): 182
SIZE C (MM): 171
SIZE D (MM): 164
SIZE E (MM): 97,8
SIZE F (MM): 129
SIZE G (MM): 40,5
SIZE H (MM): 22,2
SIZE I (MM): 8
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,025
MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,018
MAX. ABSORBED POWER AT MAX SPEED (W): 2,8
NOMINAL DIAMETER (MM): 100
VOLTAGE (V): 220-230
WEIGHT (KG): 0,8
DELIVERY 1ST SPEED (L/S): 3,3
DELIVERY 1ST SPEED (M³/H): 11,7
MAX DELIVERY AT MAX SPEED (L/S): 11,7
MAX DELIVERY AT MAX SPEED (M³/H): 42
PRESSURE - 1ST SPEED (MMH20): 2,4
PRESSURE - 1ST SPEED (PA): 23,5
PRESSURE MAX - MAX SPEED (MMH20): 8,8
PRESSURE MAX - MAX SPEED (PA): 86,3
SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MAX SPEED: 17.3
SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MIN SPEED: 10.1
SIZE A (MM): 194,6
SIZE B (MM): 182
SIZE C (MM): 171
SIZE D (MM): 164
SIZE E (MM): 97,8
SIZE F (MM): 129
SIZE G (MM): 40,5
SIZE H (MM): 22,2
SIZE I (MM): 8
