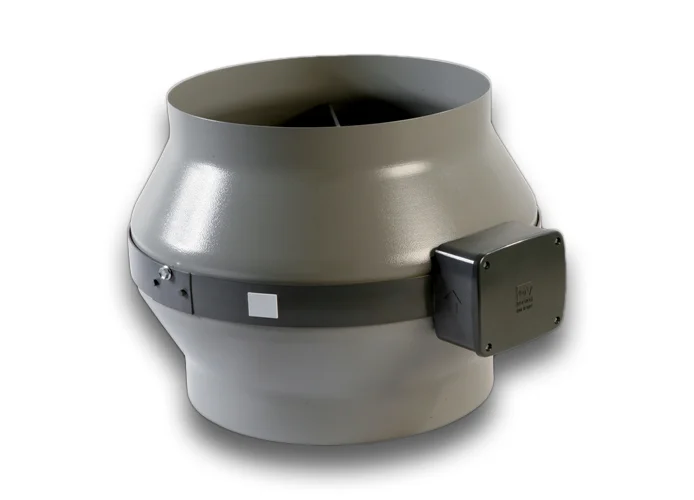

VORTICE - 16163 STEEL AXIAL CENTRIFUGAL ASPIRATOR

• PICKLED AND PHOSPHATED STEEL HOUSING WITH POLYESTER POWDER-COATED FINISH, RESISTANT TO THE AGGRESSIVE ACTION OF ATMOSPHERIC AGENTS.
• NOMINAL DIAMETER 150 MM.
• 3 SPEED FAN THROUGH TRIO-CA OPTIONAL CONTROL (COD. 12869), CONSISTING OF:
• EXTERNAL ROTOR AC MOTOR WITH THERMAL OVERLOAD CUTOUT AND SHAFT TURNING IN BALL BEARINGS,
• BACKWARD CURVED CENTRIFUGAL IMPELLER.
• OPERATION CONTROLLABLE BY REMOTE SENSORS MONITORING: TEMPERATURE, RELATIVE HUMIDITY, SMOKE AND PRESENCE.
• ZINC-COATED STEEL BRACKETS FOR WALL MOUNTING.

CA 150 MD E    16163 (EX 16153)

ABSORBED POWER 1ST SPEED (W): 45
FREQUENCY (HZ): 50-60
INSULATION CLASS: II°
IP: 44
MAX ABSORBED POWER AT 60HZ (W): 115
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,38
MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,37
MAX. ABSORBED POWER AT MAX SPEED (W): 85
NOMINAL DIAMETER (MM): 150
VOLTAGE (V): 220-240
WEIGHT (KG): 4,9
DELIVERY 1ST SPEED (L/S): 94
DELIVERY 1ST SPEED (M³/H): 340
MAX DELIVERY AT MAX SPEED (L/S): 153
MAX DELIVERY AT MAX SPEED (M³/H): 550
PRESSURE - 1ST SPEED (MMH20): 40
PRESSURE - 1ST SPEED (PA): 392
PRESSURE MAX - MAX SPEED (MMH20): 45
PRESSURE MAX - MAX SPEED (PA): 441
RPM MAX: 2670
RPM MIN: 1775
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MAX SPEED: 53,2
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MIN SPEED: 42,4

SIZE A (MM): 347
SIZE B (MM): 275
SIZE C (MM): 424
SIZE D (MM): 147
SIZE E (MM): 17
SIZE F (MM): 17
