vortice centrifugal aspirator ca md and ca 250 md and 16166 (ex 16156)

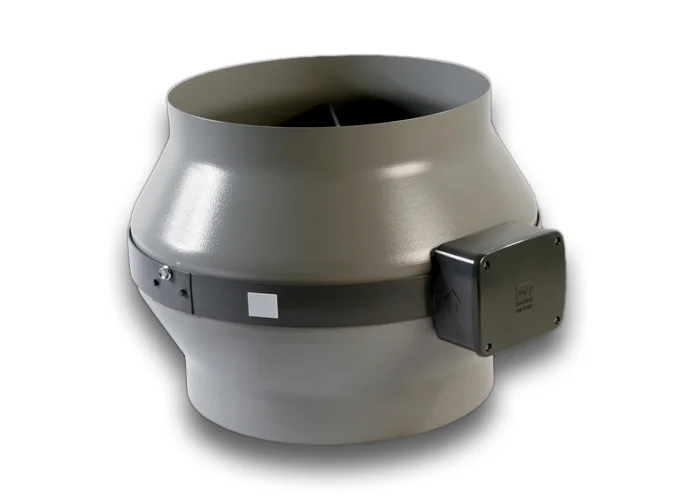

VORTICE - 16166 STEEL AXIAL CENTRIFUGAL ASPIRATOR

• PICKLED AND PHOSPHATED STEEL HOUSING WITH POLYESTER POWDER-COATED FINISH, RESISTANT TO THE AGGRESSIVE ACTION OF ATMOSPHERIC AGENTS.
• NOMINAL DIAMETER 250 MM.
• 3 SPEED FAN THROUGH TRIO-CA OPTIONAL CONTROL (COD. 12869), CONSISTING OF:
• EXTERNAL ROTOR AC MOTOR WITH THERMAL OVERLOAD CUTOUT AND SHAFT TURNING IN BALL BEARINGS,
• BACKWARD CURVED CENTRIFUGAL IMPELLER.
• OPERATION CONTROLLABLE BY REMOTE SENSORS MONITORING: TEMPERATURE, RELATIVE HUMIDITY, SMOKE AND PRESENCE.
• ZINC-COATED STEEL BRACKETS FOR WALL MOUNTING.

CA 250 MD E    16166 (EX 16156)

ABSORBED POWER 1ST SPEED (W): 58
FREQUENCY (HZ): 50-60
INSULATION CLASS: II°
IP: 44
MAX ABSORBED POWER AT 60HZ (W): 175
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,53
MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,51
MAX. ABSORBED POWER AT MAX SPEED (W): 120
NOMINAL DIAMETER (MM): 250
VOLTAGE (V): 220-240
WEIGHT (KG): 7,6
DELIVERY 1ST SPEED (L/S): 167
DELIVERY 1ST SPEED (M³/H): 600
MAX DELIVERY AT MAX SPEED (L/S): 278
MAX DELIVERY AT MAX SPEED (M³/H): 1000
PRESSURE - 1ST SPEED (MMH20): 42
PRESSURE - 1ST SPEED (PA): 412
PRESSURE MAX - MAX SPEED (MMH20): 53
PRESSURE MAX - MAX SPEED (PA): 520
RPM MAX: 1615
RPM MIN: 2660
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MAX SPEED: 52,7
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MIN SPEED: 38,3

SIZE A (MM): 347
SIZE B (MM): 275
SIZE C (MM): 424
SIZE D (MM): 247
SIZE E (MM): 38
SIZE F (MM): 35
