CAME - IRREVERSIBLE GEARMOTOR WITH ENCODER FOR SWING GATES UP TO 3 METRES PER LEAF, TESTED ACCORDING TO EN12453 - EN12445 STANDARDS
MOTOR AND ENCODER MANAGEMENT WITH THREE-WIRE CABLE
PRESSOFUSED ALUMINIUM SUPPORTING STRUCTURE
PROVISION FOR OPERATION IN THE EVENT OF A BLACKOUT
MECHANICAL, INTEGRATED AND ADJUSTABLE LIMIT SWITCHES
DEVELOPED WITH CONNECT TECHNOLOGY FOR DIGITAL REMOTE CONTROL VIA GATEWAY OR LOCALLY VIA CAME KEY
DOOR OPENING TIME AT 90°: ADJUSTABLE
POWER SUPPLY: 24V DC

001AX3024 24V DC

Type	Max widht per leaf	Max weight per leaf
AX302304 AX3024	2 m	800 kg
	2,5 m	600 kg
	3 m	500 kg
	-	-
	-	-
	-	-
	-	-
AX402306 AX412306	2 m	800 kg
	2,5 m	600 kg
	3 m	500 kg
	4* m	300 kg
	-	-
	-	-
	-	-
AX5024	2 m	1000 kg
	2,5 m	800 kg
	3 m	700 kg
	4* m	500 kg
	5* m	400 kg
	-	-
	-	-
AX71230	2 m	1000 kg
	2,5 m	800 kg
	3 m	700 kg
	4* m	500 kg
	5* m	400 kg
	6*° m	350 kg
	7*° m	300 kg

Type	Opening	A mm	B mm	C max mm	LM mm
AXO 3	90°	130	130	70	800
AXO 3	120°	150	100	50	800
AXO 4	90°	130	130	70	800
AXO 4	120°	150	100	50	800
AXO 5	90°	200	220	150	1100
AXO 5	120°	220	220	100	1100
AXO 7	90°	200	220	150	1100
AXO 7	120°	220	220	100	1100

* It is mandatory to provide an electric lock on the leaf.
º Gates longer than 5 m must not be panelled. In reversible versions, in the event of strong winds when the gate is open, the leaf may close again.

Type	AX302304	AX402306-AX412306	AX71230	AX3024	AX5024
Degree of protection	IP44	IP44	IP44	IP44	IP44
Power supply	230V 50/60 Hz	230V 50/60 Hz	230V 50/60 Hz	230V 50/60 Hz	230V 50/60 Hz
Motor power supply	220V	230V	230V	24V	24V
Absorption	1,5	1,5	1,5	10 MAX	10 MAX
Nominal power	175W	175W	175W	120W	120W
Opening time (90°)	20	28	40	adjustable	adjustable
Intermittence work	50	30	30	intensive service	intensive service
Thrust	500-4500N	500-4500N	500-4500N	500-4500N	500-4500N
Operating temperature	-20°C min / 55°C max	-20°C min / 55°C max	-20°C min / 55°C max	-20°C min / 55°C max	-20°C min / 55°C max
Motor thermoprotection	150	150	150	-	-

Complementary accessory (not included):
- ZLJ24 control panel for two-leaf swing gates with built-in radio decoding
- ZLJ14 control panel for one leaf swing gates with built-in radio decoding
- LB90 board for connection of 2 emergency batteries 12V 1.2Ah with battery support bracket for control panel ZLJ14
- LB180 board for connection of 2 emergency batteries 12V 1.2Ah with battery support bracket for control panel ZLJ24
- LOCK81 electromechanical lock single cylinder
- LOCK82 electromechanical lock double cylinder

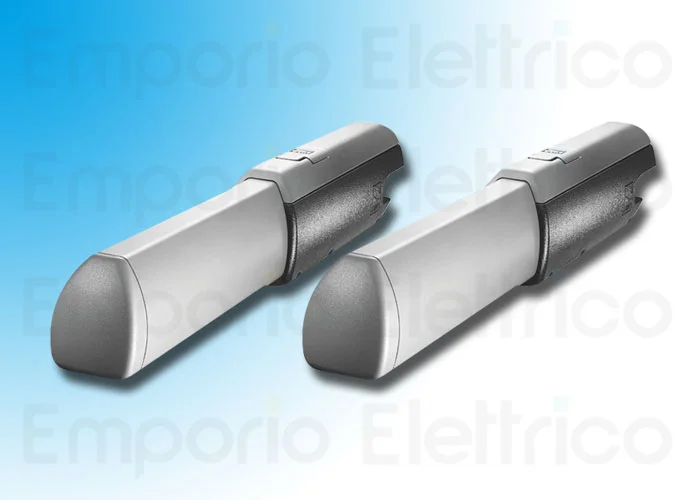

came 2 x gearmotor ati 24v 001a3024n a3024n

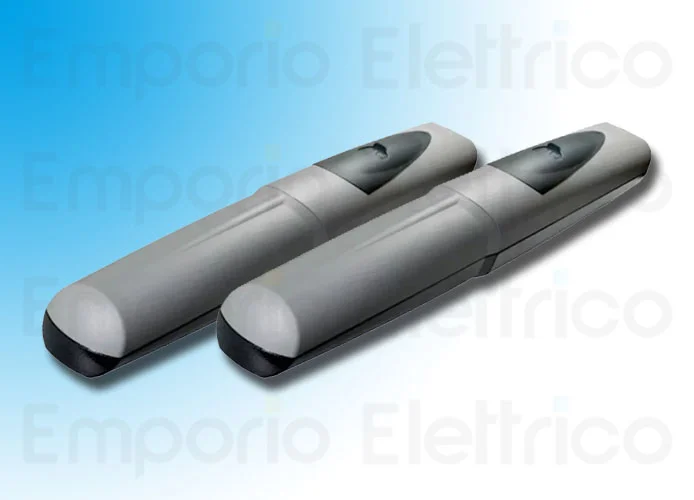

came 2 x gearmotor axo 24v 001ax3024 ax3024

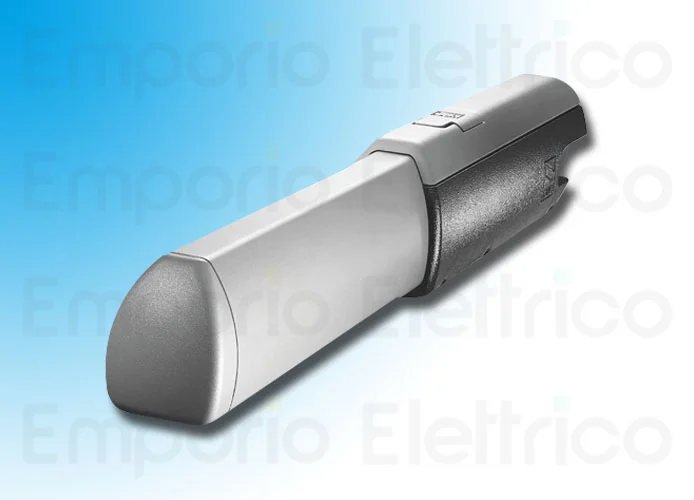

came ati 24v gearmotor 001a3024n a3024n

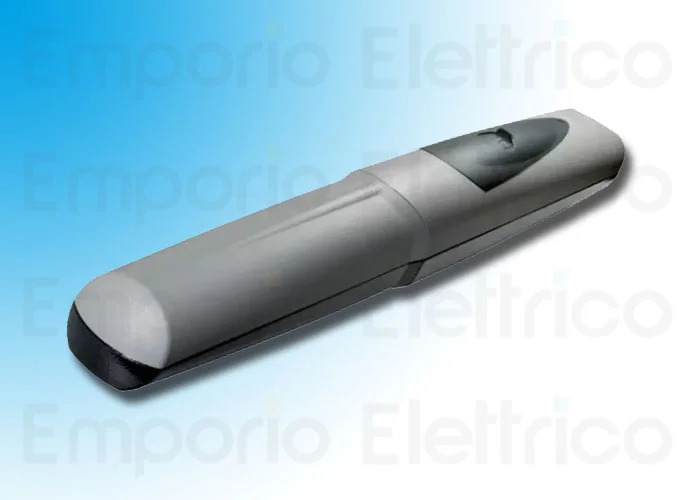

came gearmotor axo 24v 001ax3024 ax3024
