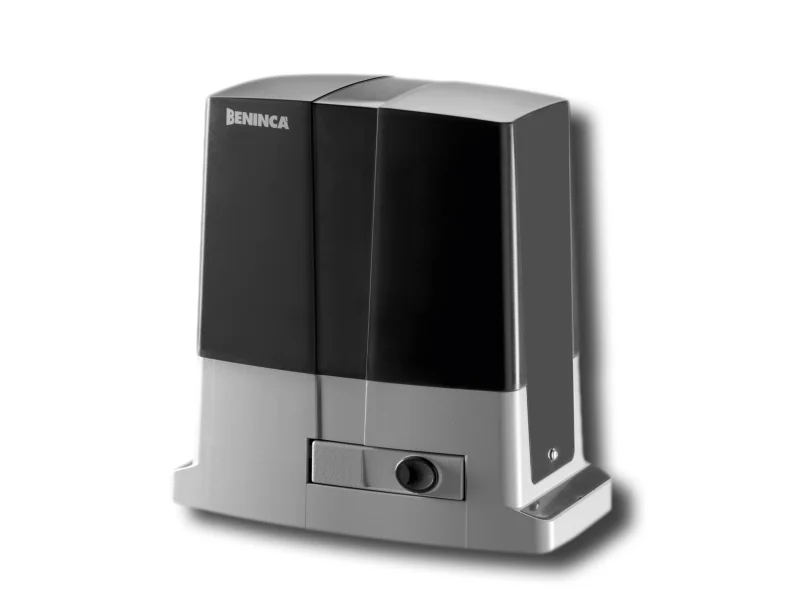

beninca geared motor 230vac for sliding gates bull5me 9591434
Brand: BENINCA
SKU: BULL5ME
€651.00 €403.62VAT INCLUDED |
|---|
beninca geared motor 230vac for sliding gates bull5me 9591434
BENINCA - ELECTROMECHANICAL 230 VAC GEARED MOTOR, FOR RESIDENTIAL SLIDING GATES, UP TO 500KG
- INTEGRATED CONTROL UNIT AND RECEIVER
- PERSONALISED RELEASE KEY
- WITH ENCODER INCLUDED
- THE ENCODER DEVICE ENSURES CRUSH PREVENTION AND PRECISION IN THE GATE MOVING PHASES
- METAL RELEASE LEVER
- MAGNETIC LIMIT SWITCHES ACCESSORY AVAILABLE (MLS)
GEARED MOTOR FOR SLIDING GATES
BULL5ME 9591434
TECHNICAL DETAILS:
POWER SUPPLY: 230 VAC (50-60HZ)
MOTOR SUPPLY: 230 VAC
MAX ABSORBED CURRENT: 1,3 A
MAX THRUST: 650 N
OPENING TIME: 10,5 M/MIN
DUTY CYCLE: 30%
PROTECTION LEVEL: IP44
OPERATING TEMPERATURE: -20°C /+50°C
- INTEGRATED CONTROL UNIT AND RECEIVER
- PERSONALISED RELEASE KEY
- WITH ENCODER INCLUDED
- THE ENCODER DEVICE ENSURES CRUSH PREVENTION AND PRECISION IN THE GATE MOVING PHASES
- METAL RELEASE LEVER
- MAGNETIC LIMIT SWITCHES ACCESSORY AVAILABLE (MLS)
GEARED MOTOR FOR SLIDING GATES
BULL5ME 9591434
TECHNICAL DETAILS:
POWER SUPPLY: 230 VAC (50-60HZ)
MOTOR SUPPLY: 230 VAC
MAX ABSORBED CURRENT: 1,3 A
MAX THRUST: 650 N
OPENING TIME: 10,5 M/MIN
DUTY CYCLE: 30%
PROTECTION LEVEL: IP44
OPERATING TEMPERATURE: -20°C /+50°C
