genius automation kit diablo 433 MHz 24v 5170206
Brand: GENIUS
SKU: 5170206
€1,358.00 €977.76VAT INCLUDED |
|---|
genius automation kit diablo 433 MHz 24v 5170206
GENIUS -KIT FOR GATES WITH TWO SWING LEAVES UP TO 2,5 m OF WIDTH AND 250 kg OF WEIGHT, COMPLETE WITH ACCESSORIES
- IRREVERSIBLE GEARMOTOR, COMPLETELY UNDERGROUND AND EXTREMELY COMPACT
- UP TO 180° OPENING AS STANDARD
- FREQUENCY 433 MHz - RC
2 x FOUNDATION BOX 6100319 NOT INCLUDED
KIT DIABLO 433 MHZ 5170206
24V DC
- IRREVERSIBLE GEARMOTOR, COMPLETELY UNDERGROUND AND EXTREMELY COMPACT
- UP TO 180° OPENING AS STANDARD
- FREQUENCY 433 MHz - RC
2 x FOUNDATION BOX 6100319 NOT INCLUDED
KIT DIABLO 433 MHZ 5170206
24V DC

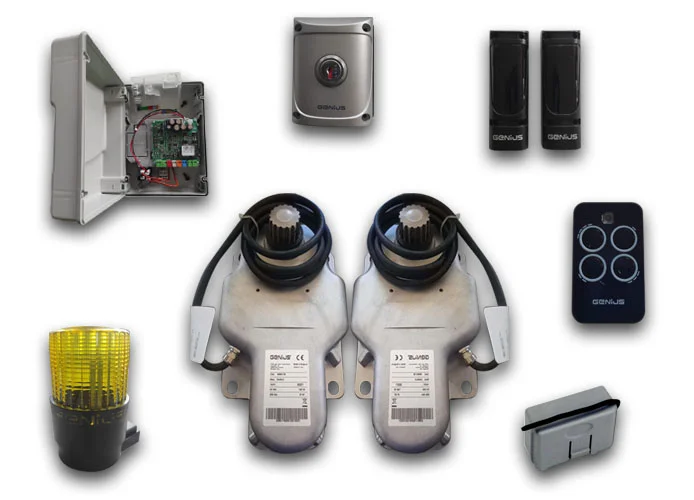

IT INCLUDES:
- 2 6170082: Diablo Motors
- 1 6100263: Electronic board for one or two swing gate gearmotors 24v dc
- 1 6100346: Rqfz 433 module with 3 pin plug-in connector, compatible with genius cards equipped with radio signal decoding and 3 pin connector
- 1 6100334: Echo tx 4 4-channel transmitter
- 1 6100316: Guard flashing led lamp 24v
- 1 6100148: Vega bus photocells
- 1 JA31101: Quick 1 key-operated selector
- 1 Warning sign
MOTOR TECHNICAL DETAILS:
- POWER SUPPLY (V) 230
- ELECTRICAL MOTOR (V) 24
- NOMINAL POWER (W) 140
- MAXIMUM TORQUE (NM) 200
- NOMINAL TORQUE (NM) 130
- ANGULAR SPEED (°/SEC) 6
- OPERATING FREQUENCY AT 20° CONTINUOUS
- OPERATING TEMPERATURE (°C) -20 +55
- DEGREE OF PROTECTION IP67
- WEIGHT (KG) 6.5
